Chaos Architecture

Chaos Finance is built on top of the Solana LSD Stack from StaFi’s AI-powered LSaaS.

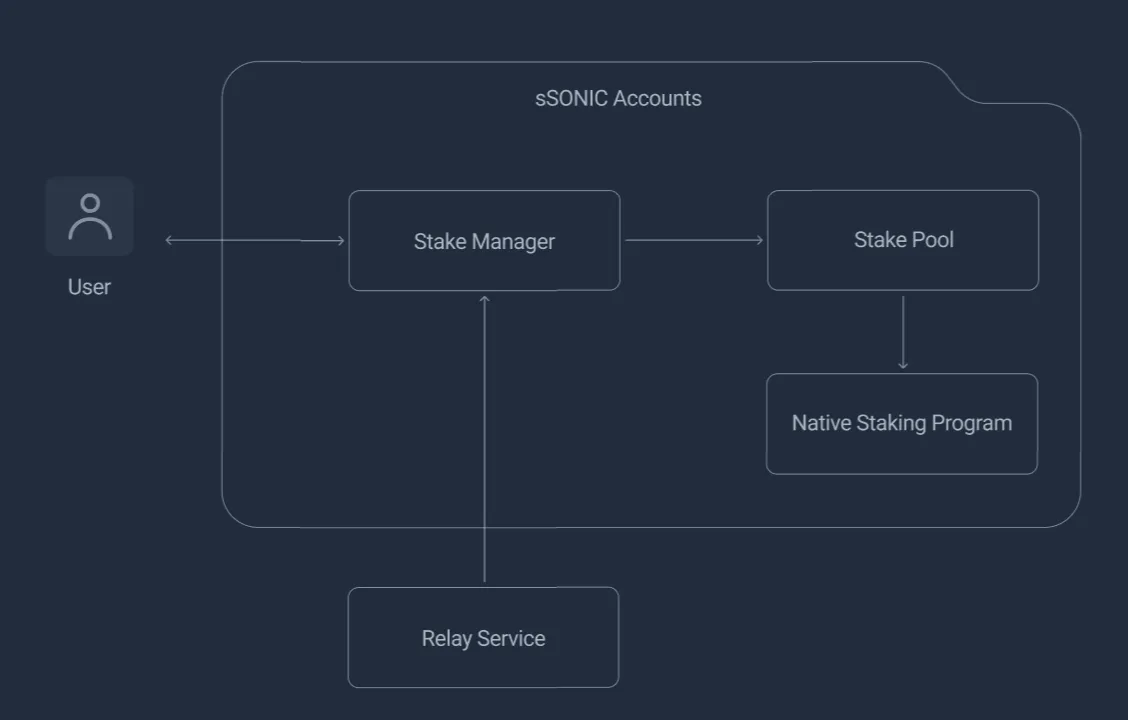

architeture_1

In the Solana ecosystem, "smart contracts" are called programs. Each program is an on-chain account that stores executable logic, organized into specific functions referred to as instructions.

Core Accounts:

  • StakeManager: the main account of sSONIC that stores all the states such as: rate, stake info list and commission fee
  • StakePool: an escrow account manages funds between stakers and sonic staking program
  • UnstakeAccount: an account stores unstake info such as: recipient, amount and withdrawal index

Core roles:

  • Admin: manages parameters of sSONIC network

Stake Flow

Users can stake SONIC to the network via stake method, and users will receive equivalent amount of sSONIC.

Amount of sSONIC = stakingAmount * Total sSONIC Supply / Total SONIC Amount

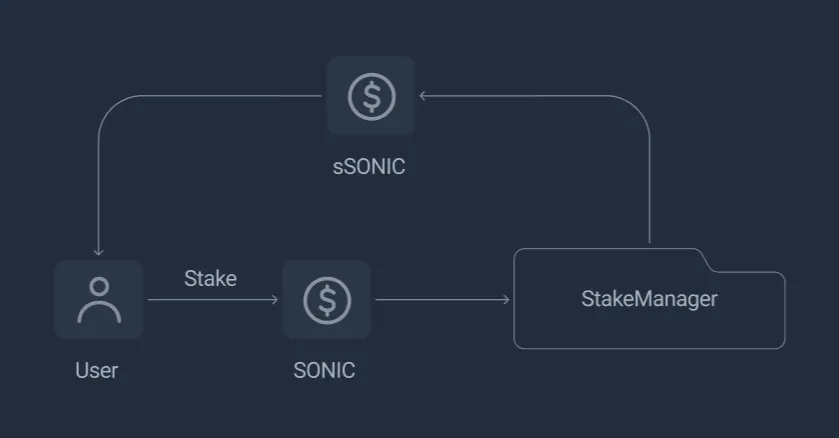

architeture_2

Unstake Flow

Any sSONIC holders are valid users, and can call unstake method to exchange SONIC with sSONIC.

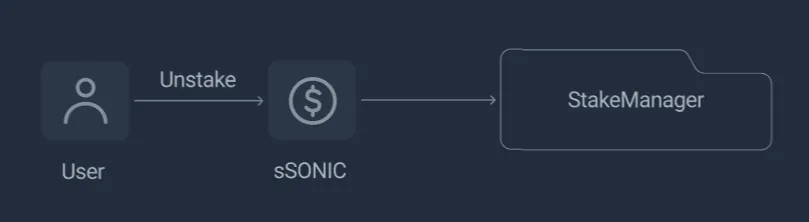

architeture_3

Withdraw Flow

Users can get their principals and rewards by calling withdraw method when there are enough amount of matured stakes.

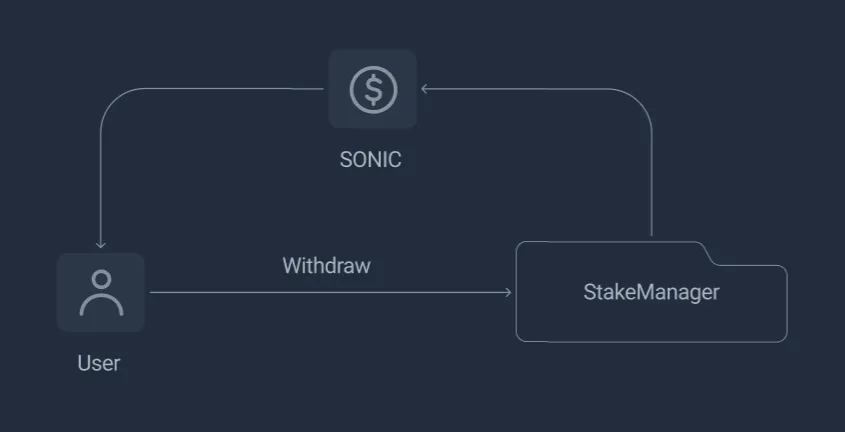

architeture_4

Relay Service

Due to the limitation of smart contract, it could not launch an execution. So Chaos Finance introduces Relay service. It will trigger StakeManager, at a certain interval, to collect and calculate users' reward, distribute it to the platform and users.
